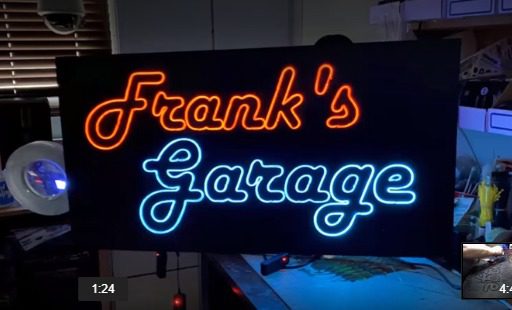

Neon Sign

Welcome back to Frank’s Garage, in this segment we tackle something that just had to be done – we have to have a sign!

There’s a lot of different ways to approach creating a sign for your shop, but I wanted to try something I’ve never tried before and create a sign using this LED Neon-like tubing.

There are two different sizes of tubing that I was able to find when creating this project. I ended up doubling up the smallest size of tubing to be able to handle the tight corners, but different sizes can tackle different designs, so have fun and play around with it until you get your desired results.

Follow along with the video to create your own sign. Don’t hesitate to reach out if you have questions, tips, or want to show us your creation.

We look forward to seeing you in the next video!

Project Materials

Plywood
Superglue
Power Supply

Example

Neon Wire

Example

Terminal Blocks

Example
