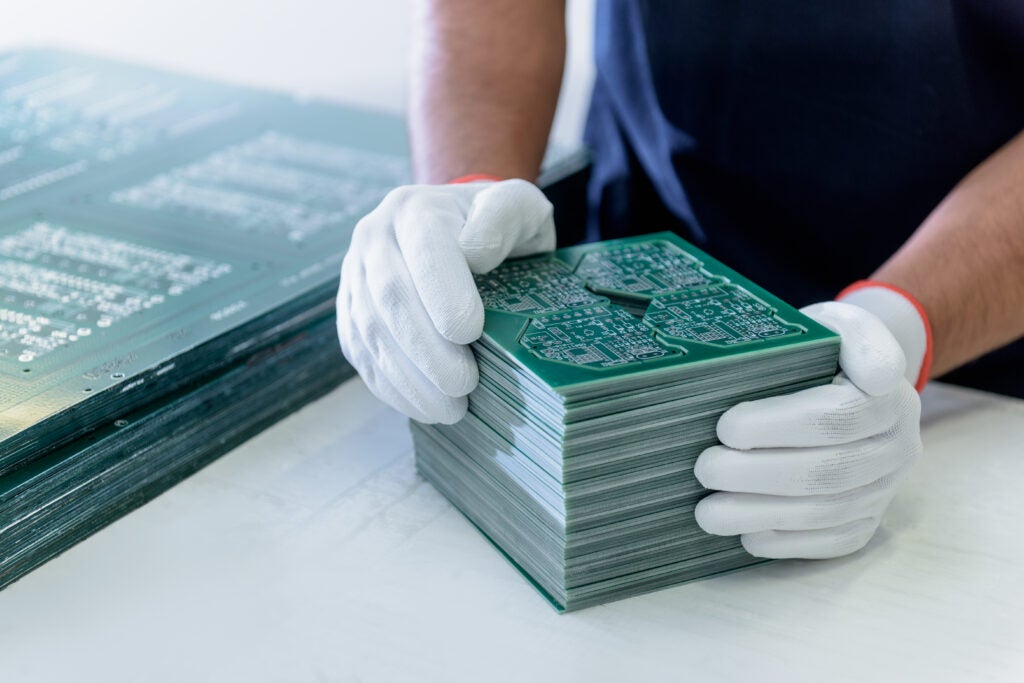

The quality of your PCB design file format management determines the yield rate of your board builds, or if your design can be manufactured at all.
Effective PCB design file format management directly impacts manufacturing success, cost efficiency, and time to market. Poor file management leads to fabrication delays, assembly errors, and costly design iterations that can derail project schedules. Selecting the right file formats and maintaining accurate component libraries ensures seamless communication between design teams and manufacturers, as well as high-yield-rate board builds.
Common PCB Design File Formats
PCB design file formats can be categorized as either contract manufacturer (CM)-agnostic or proprietary. CM-agnostic formats are generic standards that are publicly available and used by many CMs. Proprietary formats are typically used by a single CM and require their PCB design software to create.
There are several advantages of using a CM-agnostic format. Not the least of which is the flexibility to choose a preferred PCB Design software and work with multiple CMs. Below, we have compiled a list of the most common CM-agnostic PCB design file formats and compared them for longevity in use, file structure, design data they include, popularity among PCB designers and engineers, and best use case.
| PCB Design File Format Comparison | |||||
| Format | Development Year | File Structure | Data Completeness | Industry Adoption | Best Use Cases |
| Gerber RS-274X | 1980s/Extended 1990s | Multiple ASCII files | Layer-by-layer data only | 90%+ widespread | Simple designs, legacy compatibility |
| Gerber X2/X3 | 2014/2020 | Enhanced ASCII with metadata | Improved attribute data | 60% growing adoption | Standard designs with better traceability |
| ODB++ | 1995 | Compressed database format | Complete manufacturing data | 70% industry standard | Complex designs, full automation |
| IPC-2581 | 2004/Updated 2018 | Single XML file | Comprehensive dataset | 25% emerging adoption | Future-ready, intelligent manufacturing |
Data sourced from industry surveys and PCB fabricator adoption reports 2024.
General PCB Design File Management Guidelines
PCB design file management is critical for an efficient workflow, team collaboration, and project organization. Effective management is best achieved by following the five guidelines below.
Step 1: Understand File Format Advantages and Disadvantages
Modern PCB manufacturing requires different levels of data completeness depending on design complexity, fabrication technology, and assembly requirements.
| PCB Design File Format Advantages and Disadvantages | ||
| PCB Design File Format | Advantages | Disadvantages |
| Gerber Files |
|
|
| ODB++ |
|
|
| IPC-2581 |
|
|
Step 2: Select Optimal File Formats for Your CM
File format selection depends on your manufacturer’s capabilities, design complexity, and required turnaround time. Leading PCB fabricators now prefer intelligent formats that reduce manual interpretation and enable automated processing. Verify your manufacturer’s preferred format(s) during the design phase to avoid costly file conversion delays. Most fabricators accept multiple formats but achieve the fastest turnaround with their preferred intelligent format.
Step 3: Implement an Effective Component Library Management Strategy
Accurate component libraries form the foundation of reliable PCB design file generation. Outdated footprints, incorrect pin assignments, and missing 3D CAD models cause 70% of manufacturing delays and assembly errors. Consequently, it is critical to follow component library best practices, which include the following.
Library Organization Best Practices:
- Centralized component database with version control and approval workflows
- Standardized naming conventions following IPC guidelines for consistency
- Regular library audits to address obsolete components and update specifications
- Manufacturer-verified models from trusted sources like Ultra Librarian
Step 4: Organize Files and Include Version Control
Systematic file organization prevents costly mistakes during design handoffs and manufacturing release. Implement clear folder structures and naming conventions that support collaborative design workflows. Using descriptive names that include the project identifier, revision level, and date will help with file organization and design tracking.
Step 5: Employ Quality Control and File Validation
Implement a systematic PCB verification process and validate the design file package before releasing files to manufacturing. Automated checking tools identify potential issues that cause fabrication delays and assembly problems.
Optimizing PCB Design File Format Management
Effective file format management requires systematic approaches that minimize errors and accelerate manufacturing cycles:
How to Optimize Your PCB Design File Format Management📁Establish manufacturer partnerships early in the design phase to understand their preferred file formats, DRC requirements, and automated processing capabilities. 📁Implement automated file generation workflows using CAD tool scripts that create complete manufacturing packages with consistent naming and organization. 📁Maintain component library hygiene through regular audits that remove obsolete parts, update footprints, and verify 3D model accuracy against current specifications. 📁Use version control systems specifically designed for PCB design data that track changes across schematic, layout, and library files simultaneously. 📁Create manufacturing-specific output jobs within your CAD tool that generate optimized file sets for different fabricators and assembly houses. 📁Document file format decisions in design reviews to ensure team alignment and future design consistency across product families. 📁Validate files using third-party viewers before release to catch format-specific issues that may not appear in native CAD environments. 📁Archive complete design packages, including CAD files, manufacturing outputs, and component libraries to support future modifications and compliance requirements. |
Following proven file format management guidelines ensures reliable manufacturing handoffs while reducing design iteration cycles. Focus on intelligent file formats, accurate component libraries, and systematic validation processes to achieve optimal manufacturing outcomes that meet cost and schedule targets.
