Amplifier CAD Models
Amplifiers transform tiny signals into big, bold sound
Amplifier CAD Models
Amplifiers are active components in analog and mixed-signal electronic systems, providing signal gain for applications such as sensor interfaces, audio drivers, filtering, and signal conditioning. Amplifiers can be included within integrated circuits (ICs) and take a small input signal and produce a larger output signal, providing “gain”. Commonly used amplifier types include operational amplifiers (op-amps), audio amplifiers, and radio frequency (RF) amplifiers.
However, successfully integrating an amplifier into a printed circuit board (PCB) design requires more than just selecting a part with the right gain and bandwidth. It requires accurate, verified CAD data to translate the schematic into a functional, manufacturable product. Sourcing complete and correct amplifier CAD models is a foundational step for any high-performance analog or mixed-signal PCB design.
The Need for Verified Amplifier CAD Models
As applications become more demanding, amplifier circuits become increasingly complex, and the need for complete and accurate amplifier CAD models, including the footprint and 3D model, becomes even more critical.
- High-Speed and RF Amplifiers: These devices operate at frequencies where the physical layout of the PCB is part of the circuit. The length of traces, the shape of the pads, and the proximity to ground planes all affect performance. An inaccurate PCB footprint can alter the signal path's impedance, resulting in signal reflections and degraded performance.
- Differential Amplifiers: These amplifiers have two inputs and amplify the difference between them, providing excellent common-mode noise rejection. They are essential in noisy environments or for high-precision measurements. Routing the input traces as a matched differential pair is crucial, and this depends on a precise, symmetrical PCB footprint.
- Power Amplifiers and Thermal Management: Amplifiers that deliver significant power to a load (like audio or motor drivers) dissipate a lot of heat. Many are packaged in packages with an exposed pad on the underside, which must be soldered to a copper area on the PCB to act as a heat sink. An amplifier CAD model without an accurately defined exposed pad in its footprint will lead to immediate overheating and device failure. The 3D model is also vital here for ensuring proper heat sink mounting and airflow in the final assembly.
For these advanced applications, a verified amplifier CAD model is not just a convenience; it is a requirement for a successful design.
The Ultra Librarian Solution for Amplifier CAD Models
Ultra Librarian solves the challenges of sourcing CAD data by providing a single, unified platform for millions of electronic components, including a vast and growing library of amplifiers.
| Key Features of the Ultra Librarian CAD Library: | |
| Feature | Description |
| Single Source of Truth | Access verified amplifier symbols, footprints, and 3D models in one place—all linked to a single manufacturer part number for complete data integrity. |
| Standards-Compliant Data | Footprints are built to IPC standards, minimizing the risk of manufacturing errors and eliminating the need for tedious manual checks. |
| Universal ECAD Support | Models are available in native formats for all major ECAD tools, eliminating the need for risky and time-consuming format conversions. |
| Integrated Supply Chain Info | Every Amplifier CAD Model includes live sourcing data from global distributors, including pricing, stock levels, and lifecycle status, connecting design choices directly to the supply chain. |
Searching for Amplifier CAD Model on Ultra Librarian
When searching for amplifier CAD models, Ultra Librarian simplifies the process by allowing you to filter components by manufacturer, distributor, or CAD model type. Each amplifier model is linked to its manufacturer part number, making it easy to cross-reference with procurement and simulation data.

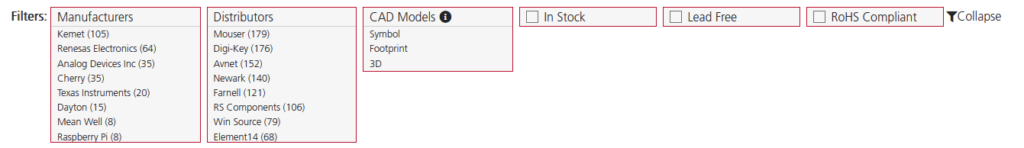

Ultra Librarian enables filtering by manufacturers, distributors, or CAD models when searching for components
Viewing CAD Model on Ultra Librarian
For example, the Texas Instruments UA741CP amplifier is available on the Ultra Librarian website, complete with a set of resources including a symbol, footprint, and 3D model. The footprint can be viewed in either Basic or Detailed mode.
Texas Instruments UA741CP amplifier model in basic view
Downloading Amplifier CAD Model on Ultra Librarian
Downloading CAD models is equally straightforward. Ultra Librarian allows you to export models directly in your preferred ECAD software format. You can customize symbol pin ordering (Sequential or Functional) and select units in mils or millimeters, ensuring smooth integration into your PCB design.
Amplifiers CAD model download menu with many ECAD software formats
If you’re looking for CAD models for your amplifier, Ultra Librarian helps by compiling all your sourcing and CAD information in one place. You can download amplifier CAD models in popular ECAD applications formats from worldwide distributors.
Working with Ultra Librarian sets your team up for success, ensuring streamlined and error-free design, production, and sourcing. Register today for free.
